- Provides detailed, color video in low-light conditions with Chroma24
- Built-in 30m dual illuminators (IR, Warm Light) captures color objects in darkness
- See objects clearly in high-contrast scenes with WDR Pro
- Proactively detect events through AI analytics
- Ensures outdoor durability with weather-resistant IK10 metal housing
Benefit
See Color Details at Night— Powered by Chroma24
VIT04A-W delivering accurate color and detail in low-light environments, users can see color where others see darkness.
See Color Details in Darkness
VIT04A-W remains in discreet monitoring status until an object is detected below 0.5 lux illumination. Upon detection, the warm light instantly activates to capture clear, full-color footage.

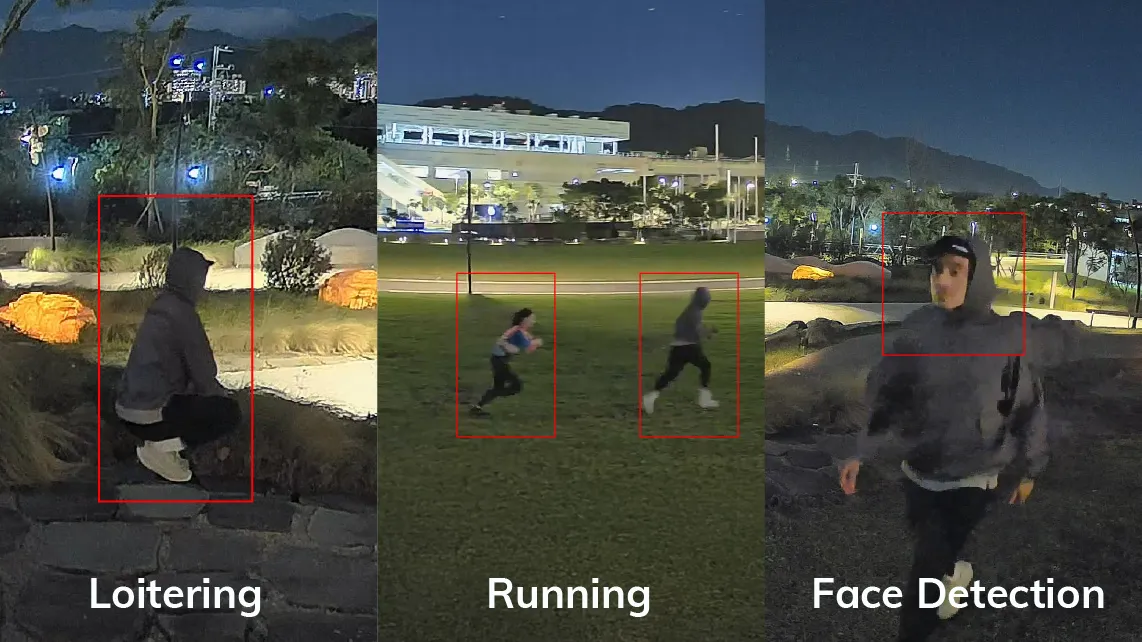

Proactively Detect Events through AI Analytic at Night
VIT04A-W offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches at night.

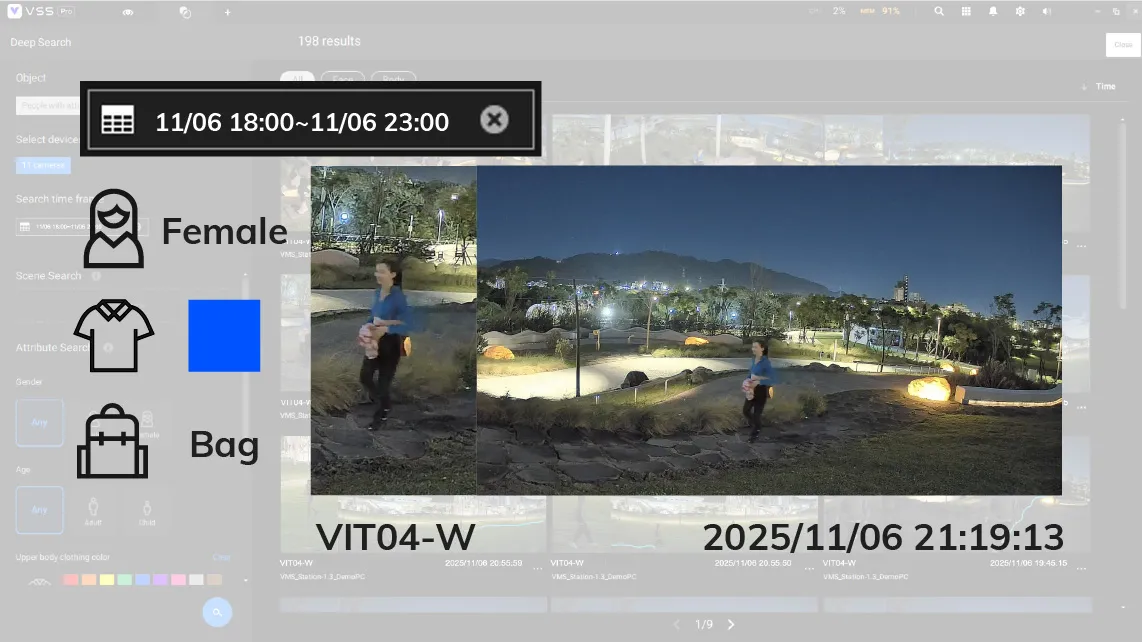

Search results in color — Even at night
Effortlessly find evidence without scanning hours of footage, which allows fast and precise video searches based on various color and attributes. VIT04A-W captured color footage at night, users can view snapshots of people and their paths clearly, not black and white anymore.
Complete Video Security with VIVOTEK Solution
VIVOTEK provides complete hybrid-cloud solution to access and manage all devices and accounts through a single platform, providing accurate event monitoring and intuitive security system operation video investigation no matter where you are.
Product Details
System Information
CPU
Multimedia SoC (System-on-Chip)
Flash
8 GB
RAM
2 GB
Camera Specifications
Image Sensor
1/1.8" Progressive CMOS
Max. Resolution
2688x1520 (4MP)
Lens Type
Fixed-focal
Focal Length
f = 2.8 mm
Aperture
F1.0
Iris Type
Fixed Iris
Field of View
103.4° (Horizontal)
75.3° (Vertical)
135.2° (Diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Pro
Day/Night
Yes
Removable IR-cut filter
Yes
Illuminators
Built-in Warm Light & Infrared (Hybrid) illuminators, effective up to 30 meters with Smart IR/ warm light
Minimum Illumination
0.003lux @ F1.0 (Color)
0 lux with IR illumination on
Pan Range
>350°
Tilt Range
70°
Rotation Range
±175°
Pan/Tilt/Zoom Functionalities
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage
Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Built-in Installation Aids
Pixel calculator
Video
Compression
H.265, H.264, MJPEG
Maximum Frame Rate
30 fps @ 2688x1520 (4MP)
Maximum Streams
3 video streams (Up to 8 configurable profiles)
Main Stream
30fps @ 2688x1520, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
2nd Stream
30fps @ 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9)
3rd Stream
30 fps @ 1280x720, 640x360 (16:9)
S/N Ratio
57 dB
Dynamic Range
120 dB
Video Streaming
Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings
General settings
video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators,smart hybrid, anti-overexposure/smart IR
Image settings
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
Exposure
BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR
Privacy mask
Pixel calculator
Scheduled profile settings
Audio
Audio Capability
One-way Audio
Compression
MPEG-2 AAC-LC, G.711, G.726
Interface
Built-in microphone
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Security
Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMPv4/ICMPv6, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF
Profile G, S, T, M supported, specification available at www.onvif.org
AI Analytics
Compute Capability
SoC with built-in hardware deep learning accelerator
Vision Object Analytics
Object Detection
People, Vehicle (4-wheeled, 2-wheeled)
Attribute Extraction
People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
Re-Search Extraction
Path Extraction
Application
Deep Learning VCA (Smart Motion Detection, Smart VCA)
Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection, Unattended object detection, Missing object detection, Crowd
detection,)
Application available with license
Running detection, Parking Violation Detection, Restricted Zone Detection
Support for more analytic applications and free trial,
please visit vivotek.com/video-analytics
Solution Integration
VADP Package
Trend Micro (Default, 3-year free trial)
Video Motion Detection
Motion Detection (Five-window video motion detection)
Alarm and Event
Event Trigger
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event Action
Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
Connectors
RJ-45 cable connector for 10/100 Mbps Network/PoE connection
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
Max: 10.7W / 7W (IR on/off)
Normal: 5.5W
Dimensions
ø 120 x 97 mm
Weight
720 g
Certifications
EMC
CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
Safety:
UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
Environment
IK10 (IEC 62262), IP66 (IEC 60529)
IA
BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
Operating Temperature
Starting Temperature:
-10°C ~ 50°C (14°F ~ 122°F)
Working Temperature:
-30°C ~ 50°C (-22°F ~ 122°F) (IR off)
-30°C ~ 45°C (-22°F ~ 113°F) (IR on)
Humidity
95%
System Requirements
Operating System
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Other Players
VLC: 1.1.11 or above
Included Accessories
Packing Contents
Quick installation guide, alignment sticker, screw pack, cable gland
DORI (EN 62676-4 Standard)
Detection (25PPM/ 8PPF)
60.4 m (198.1 ft)
Observation (63PPM/ 19PPF)
24.1 m (79.2 ft)
Recognition (125PPM/ 38PPF)
12 m (39.5 ft)
Identification (250PPM/ 76PPF)
6.0 m (19.6 ft)
